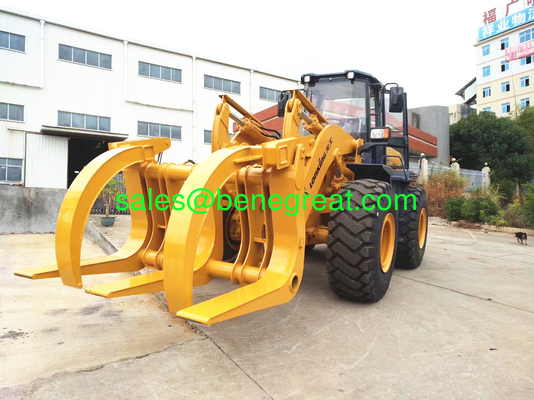

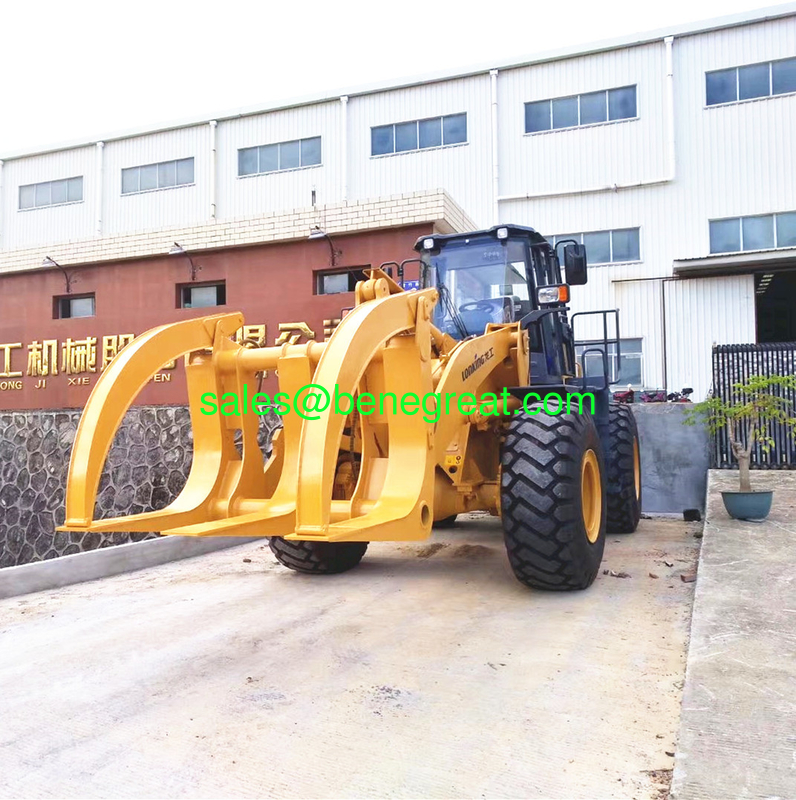

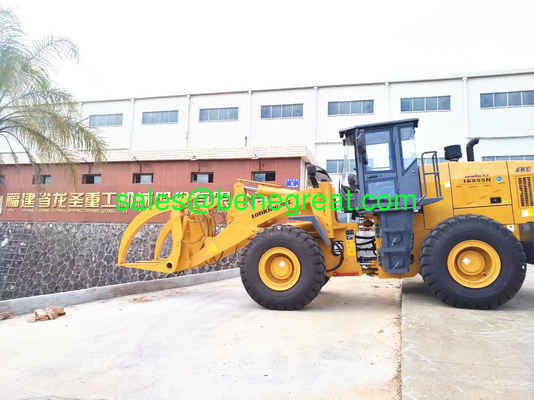

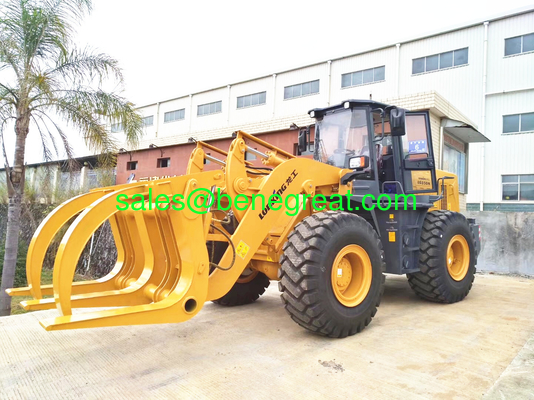

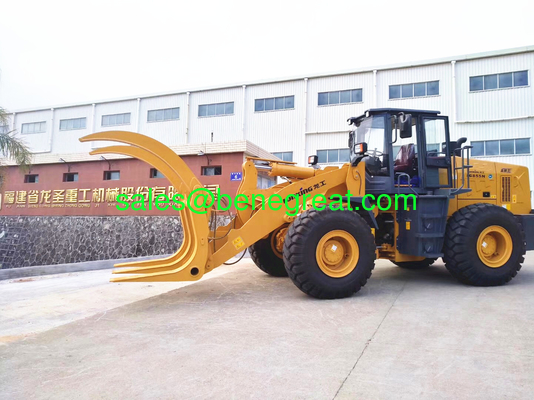

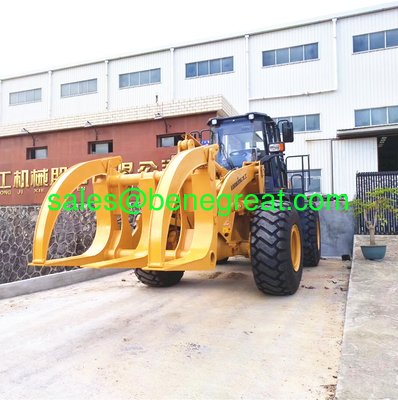

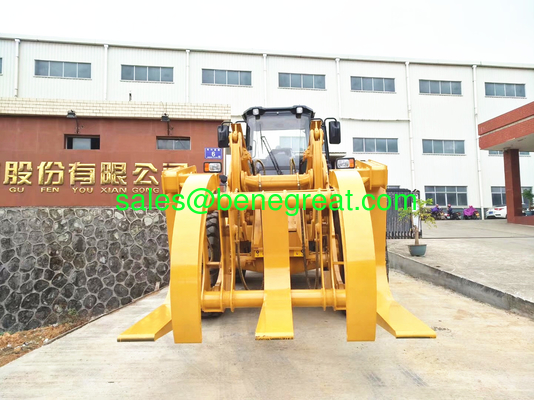

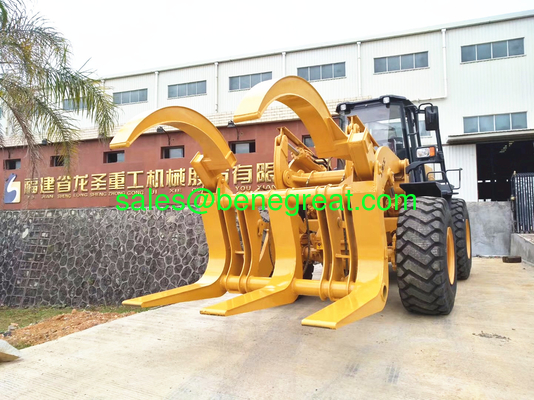

Lonking LG850 wheel Loader 5ton wheel loader with log grapple
POWERFUL WEICHAI ENGINE
LONKING TRANSMISSION
LONKING AXLES
JOYSTICK CONTROL
ROPS&FOPS CABIN
VARIETY WITH ATTACHMENT
CONVENIENT MAINTENANCE
| NO. | DESCRIPTION | UNIT | DIMENSIONS |
| A | Overall Height–Bucket Raised | mm | 7171 |
| B | Bucket Pin Height at Max.Lift | mm | 5560 |
| C | Dump Clear an ceat Max.Lift(45°) | mm | 4520 |
| D | Reach at Max.Liftand45°Dump | mm | 2815 |
| E | Rack Back Angleat Carry | ° | 45 |
| F | Rac kBack Angleat Ground | ° | 44 |
| G | Digging Depth | mm | 50 |
| H | Rack Back Angleat Max.Lift | ° | 51 |
| I | Dump Angleat Max.Lift | ° | 40 |
| J | Carry Height | mm | 400 |
| K | Ground Clearance | mm | 408 |
| L | Center Line of Front Axleto Hitch | mm | 1615 |
| M | Wheel Base | mm | 3230 |
| N | Overall Length | mm | 10320 |
| O | Departure Angle | ° | 28 |
| P | Height to Top of Cab | mm | 3380 |
| Q | Overall Width over Bucket | mm | 3034 |
| R | Min.Turning Radius over Bucket | mm | 8454 |
| S | Min.Turning Radius over Tires | mm | 6537.5 |
| T | Steering Angle–Left/Right | ° | 35 |
| U | Width at Tread Center | mm | 2240 |
| V | Over all Width overTires | mm | 2835 |
| OVERALL DATA | |
| Bucket Capacity | 3.0m³ |
| Rated Payload | 2500kg |
| Operating Weight | 17900±300kg |
| Traction Force | 160±3kN |
| Breakout Force | 135±3kN |
| L×W×H | 10320×3034×3380mm |
| ENGINE&ELECTRICAL SYSTEM | |
| Maker/Model | WEICHAI/WD10G220E21 |
| Emission Standard | EPA (TierⅡ)/NationalⅡ |
| Engine Type | 4 Stroke,Turbocharged,Water-cooled,Direct Injection,Diesel Engine |
| Rated Power | 162kW(220hp)/2200rpm |
| Maximum Torque | 860N·m/1400-1600rpm |
| Bore x Stroke (mm) | 126×130 |
| No. of Cylinders/Displacement | 6/9.726L |
| Compression Ratio | 17 |
| Air Cleaner | Three Stage Air Cleaner with Cyclone Pre-cleaner |
| Alternator | 55Amp |
| Battery | 2-24V/120Ah |
| Starting Motor | 24V/7.5kW |
| Heating Capacity (W)-OPTIONAL | 5000W |
| Cooling Capacity (W)-OPTIONAL | 4700W |
