Datos del producto:
Pago y Envío Términos:
|
| engine: | xinchai | color: | yellow |
|---|---|---|---|
| warranty: | one year | Certificado: | Sección 2 |

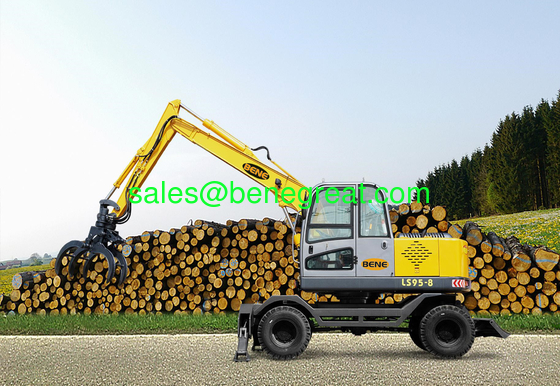

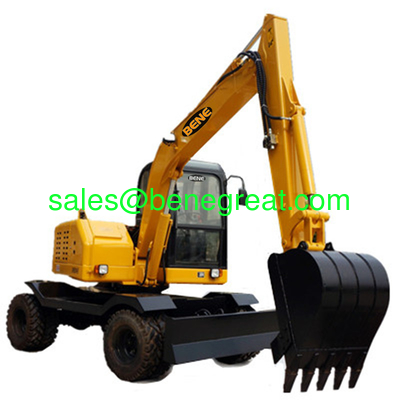

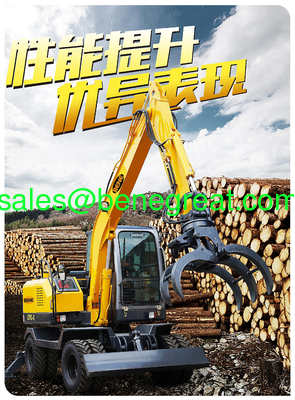

Chinese cheap 6ton mini wheel excavator with 0.23cbm bucket 6 ton wheel excavator with log grab for timber loading
Depend on the market demand, our company independently research and development 360 ° rotating bamboo (sugar cane) pick up machine. Our pick up machine with the unique spin-stop brake reliability, the grapple can open maximum distance of up to 1.25 meters, the maximum pick up weight up to 500kg, equipped with legs with bulldozers, greatly enhance the work of the machine stability and balance .
Our company has researched and developed various of work devices such as breaking hammer ,bulldozing plate rotating inflection clip wood ,salt hopper steel scrap hopper ,lath-stone jig ,bucket fast converter etc to satisfy market demands . These various of work devices can adapt different work environments and fully exert application range and practical valve of excavators and create much better economic benefits for customers
| 65W-8 Technical data | |
| Boom length | 3400mm |
| Arm length | 1900mm |
| Maximum loading distance | 4300mm |
| Maximum discharge height | 4630mm |
| When the maximum discharge height distance | 850mm |
| Maximum loading quality | 500kg |
| set wood biggest opening size | 1250mm |
| Width of platform | 1900mm |
| Overall width | 1950mm |
| Machine weight | 2800mm |
| Distance from the digging arm to rotate machine | 4090mm |
| Maximum length of transportation | 5900mm |
| Power | 42kw/2100rpm |
| Machine weight | 6400kg |
| Set pressure with main spill valve | 19.5Mpa |
| Maximum traction force | 60KN |
| Gradeability | 59% (30) |
| Pressure to the ground | 49Kpa |
| Travel speed | 27km/h |
| Maximum traction force | 60KN |
| Swing speed of platform | 10.5rpm |
| Fuel tank capacity | 110L |
| Hydraulic tank capacity | 125L |
